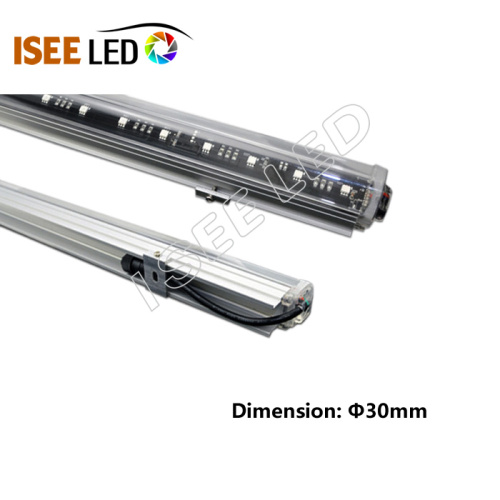

UCS1903 6803 IC Programmable LED RGB Tube
Spi Led Tube Light use the UCS1903 and LPD6803 IC
Led Digital Tube is DC12V or DC24V working voltage which is safety for your led project installation
Indoor Led Linear Tube is easy connection , with the waterproof connect cable to plug in or out
SPI 3D LED Tube Light can use for the indoor and outdoor , conveniet for the end user
Color Changing Tube Lights have 2 years warranty
Products Description
1, DMX512 and SPI solution is available.
2, 1led/pix, 2led/pix, 3led/pix, 6led/pix or customized.
3, RGB color, full color.
4 , Aluminum housing in silver color or customized color. 5, Milky, transparent, stripe PC diffuser.
6, IP65 waterproof.
|
Model NO.
|
LED-LT3760SPI3216
|
LED-LT3760SPI1608
|
LED-LT3760SPI4816
|
LED-LT3760SPI2408
|
|
Dimension
|
1000x37x60mm
|
500x37x60mm
|
1000x37x60mm
|
500x37x60mm
|
|
LED type and QTY
|
32 pcs SMD RGB 5050
|
16 pcs SMD RGB 5050
|
48 pcs SMD RGB 5050
|
24 pcs SMD RGB 5050
|
|
Pixel QTY
|
16 PIX
|
8 PIX
|
16 PIX
|
8 PIX
|
|
Emitting angle
|
120 degree
|
120 degree
|
120 degree
|
120 degree
|
|
Color
|
■■■ RGB full color
|
■■■ RGB full color
|
■■■ RGB full color
|
■■■ RGB full color
|
|
Operating Voltage
|
DC 12V
|
DC 12V
|
DC 12V
|
DC 12V
|
|
Power
|
MAX=12W
|
MAX=6W
|
MAX=12W
|
MAX=6W
|
|
Control Protocol
|
SPI
|
|
Address Setting
|
Automatically
|
|
Control Mode
|
Artnet / DVI / Standalone Control
|
|
Material
|
Aluminum housing + PC diffuser
|
|
Housing Color
|
Silver, White or Black
|
|
Diffuser Color
|
Clear Stripe / Milky diffuser
|
|
Protection
|
IP65
|
|
LED Source Life
|
50,000 hours, based on test data of LED manufacturer
|
|
Temperature
|
-4℉ to 122℉(-20℃ to 50℃) operating temperature
|
|
Humidity Range
|
0 to 95% non-condensing
|
|
Model NO.
|
LED-LT5664SPI3216
|
LED-LT5664SPI1608
|
LED-LT5664SPI4816
|
LED-LT5664SPI2408
|
|
Dimension
|
1000x56x64mm
|
500x56x64mm
|
1000x56x64mm
|
500x56x64mm
|
|
LED type and QTY
|
32 pcs SMD RGB 5050
|
16 pcs SMD RGB 5050
|
48 pcs SMD RGB 5050
|
24 pcs SMD RGB 5050
|
|
Pixel QTY
|
16 PIX
|
8 PIX
|
16 PIX
|
8 PIX
|
|
Emitting angle
|
120 degree
|
120 degree
|
120 degree
|
120 degree
|
|
Color
|
■■■ RGB full color
|
■■■ RGB full color
|
■■■ RGB full color
|
■■■ RGB full color
|
|
Operating Voltage
|
DC 12V
|
DC 12V
|
DC 12V
|
DC 12V
|
|
Power
|
MAX=12W
|
MAX=6W
|
MAX=12W
|
MAX=6W
|
|
Control Protocol
|
SPI
|
|
Address Setting
|
Automatically
|
|
Control Mode
|
Artnet / DVI / Standalone Control
|
|
Material
|
Aluminum housing + PC diffuser
|
|
Housing Color
|
Silver, White or Black
|
|
Diffuser Color
|
Milky / Clear Stripe / Clear diffuser
|
|
Protection
|
IP65
|
|
LED Source Life
|
50,000 hours, based on test data of LED manufacturer
|
|
Temperature
|
-4℉ to 122℉(-20℃ to 50℃) operating temperature
|
|
Humidity Range
|
0 to 95% non-condensing
|
