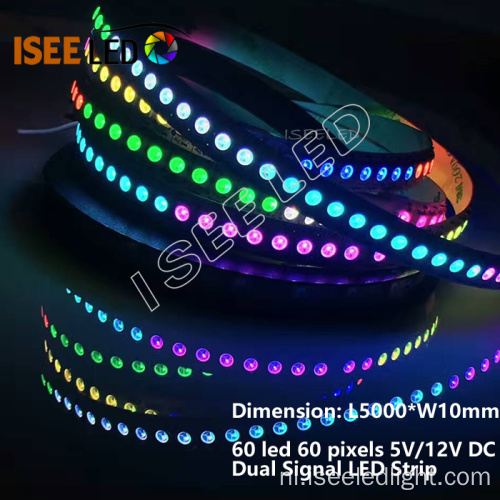

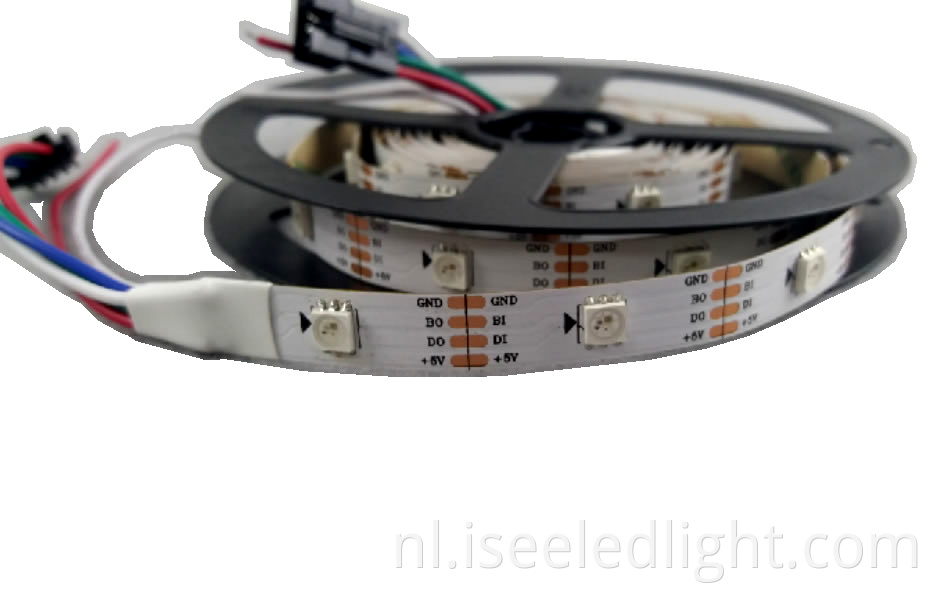

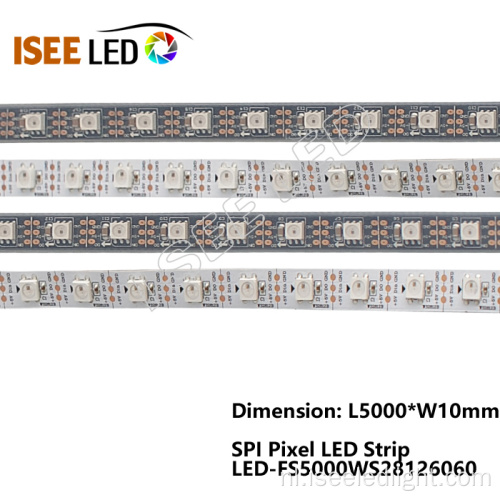

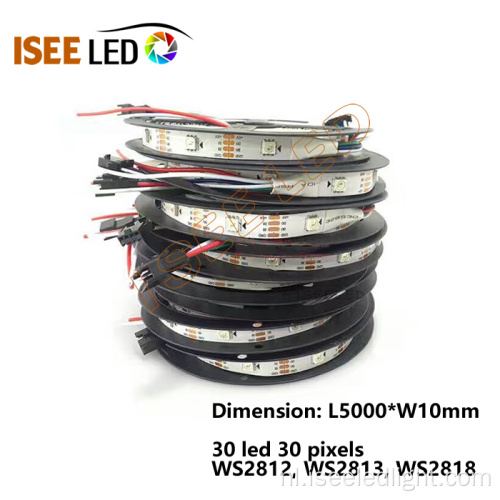

Dynamische LED -strip pixel tot pixel
Productenbeschrijving
Dynamische LED -strip pixel tot pixel, dat op grote schaal is aangepast voor allerlei toepassingen, waaronder podium -LED -verlichtingsdecoratie, clubsfeer gebouwd, feest- en videokartproject, studiokamer decoratie, enz
Dynamische LED -strip kan worden verdeeld 1 LED 1 pixel, 3 LED 1 Pixel Type in pixel LED -strip, RGB Dynamic LED -strip en RGBW Dynamic LED -strip in kleuruitgang, IC ingebouwde LED -strip of IC externe LED -strip in LED IC -stuurprogramma's Positie, Een enkel signaal en dubbel signaal in signaaloverdracht, ook kunt u de dynamische LED -strip kiezen in een waterdichte beschermingskwaliteit en de PCB -kleur in witte of zwarte dynamische LED -strip.
Dynamische LED-strip Need Drive By Constant Spanne LED-voeding zoals LRS-350-12 of LRS-350-5 Meanwell-voeding en LED-controller die u kunt kiezen voor de verschillende LED-controller voor projectvereisten, en we bieden eenvoudige Artnet LED-controller, DVI, DVI, DVI, DVI, DVI, DVI, DVI, DVI, DVI, DVI, DVI, DVI LED -controller, SD -kaart zelfstandige LED -controller en online/offline LED -controller, enz
|
Model NO.
|
LED-FS5000WS28123030
|
LED-FS5000WS28126060
|
LED-FS5000WS2812144144
|
LED-FS5000WS28123232
|
|
LED type
|
SMD RGB 5050
|
SMD RGB 5050
|
SMD RGB 5050
|
SMD RGB 5050
|
|
LED QTY
|
30 Leds/meter
|
60 Leds/meter
|
144 Leds/meter
|
32 Leds/meter
|
|
Color
|
■■■ RGB full color
|
■■■ RGB full color
|
■■■ RGB full color
|
■■■ RGB full color
|
|
Operating Voltage
|
DC 5V
|
DC 5V
|
DC 5V
|
DC 5V
|
|
Power
|
MAX=9W/M
|
MAX=18W/M
|
MAX=43.2W/M
|
MAX=9.6W/M
|
|
Dimension
|
L5000mm x W10mm
|
L5000mm x W12mm
|
L5000mm x W12mm
|
L5000mm x W12mm
|
|
Working Current
|
1.8A / M
|
3.6A/ M
|
8.64A/ M
|
1.92A/ M
|
|
PCB Color
|
White/Black
|
|
LED Source Life
|
50,000 hours, based on test data of LED manufacturer
|
|
Temperature
|
-4℉ to 122℉(-20℃ to 50℃) operating temperature
|
|
Protection
|
IP20/IP65/IP67/IP68
|
|
Model NO.
|
LED-FS5000WS28133030
|
LED-FS5000WS28136060
|
LED-FS5000WS2813144144
|
LED-FS5000WS28133232
|
|
LED type
|
SMD RGB 5050
|
SMD RGB 5050
|
SMD RGB 5050
|
SMD RGB 5050
|
|
LED QTY
|
30 Leds/meter
|
60 Leds/meter
|
144 Leds/meter
|
32 Leds/meter
|
|
Color
|
■■■ RGB full color
|
■■■ RGB full color
|
■■■ RGB full color
|
■■■ RGB full color
|
|
Operating Voltage
|
DC 5V
|
DC 5V
|
DC 5V
|
DC 5V
|
|
Power
|
MAX=9W/M
|
MAX=18W/M
|
MAX=43.2W/M
|
MAX=9.6W/M
|
|
Dimension
|
L5000mm x W10mm
|
L5000mm x W12mm
|
L5000mm x W12mm
|
L5000mm x W12mm
|
|
Working Current
|
1.8A / M
|
3.6A/ M
|
8.64A/ M
|
1.92A/ M
|
|
PCB Color
|
White/Black
|
|
LED Source Life
|
50,000 hours, based on test data of LED manufacturer
|
|
Temperature
|
-4℉ to 122℉(-20℃ to 50℃) operating temperature
|
|
Protection
|
IP20/IP65/IP67/IP68
|
|
Model NO.
|
LED-FS5000WS281126020
|
LED-FS5000WS28114816
|
LED-FS5000WS28113010
|
|
LED type
|
SMD RGB 5050
|
SMD RGB 5050
|
SMD RGB 5050
|
|
LED QTY
|
60 Leds/meter
|
48 Leds/meter
|
30 Leds/meter
|
|
Color
|
■■■ RGB full color
|
■■■ RGB full color
|
■■■ RGB full color
|
|
Operating Voltage
|
DC 12V
|
DC 12V
|
DC 12V
|
|
Power
|
MAX=9W/M
|
MAX=18W/M
|
MAX=7.2W/M
|
|
Working Current
|
1.2A/M
|
0.96A/M
|
0.6A/M
|
|
Dimension
|
L5000mm x W10mm
|
|
PCB Color
|
White/Black
|
|
LED Source Life
|
50,000 hours, based on test data of LED manufacturer
|
|
Temperature
|
-4℉ to 122℉(-20℃ to 50℃) operating temperature
|
|
Protection
|
IP20/IP65/IP67/IP68
|
informatie ordenen
|
Model No.
|
Details
|
|
Dynamic LED Strip Pixel to Pixel
|
|
LED-FS5000SPI3010
|
SPI flexible strip, Black/White PCB, 30pcs smd rgb 5050 and 10pixels per meter, DC12V, 7.2W/M, IP65. 5meters in one roll.
|
|
LED-FS5000SPI4816
|
SPI flexible strip, Black/White PCB, 48pcs smd rgb 5050 and 16pixels per meter, DC12V, 12W/M, IP65. 5meters in one roll.
|
|
LED-FS5000SPI6020
|
SPI flexible strip, Black/White PCB, 60pcs smd rgb 5050 and 20pixels per meter, DC12V, 14.4W/M, IP65. 5meters in one roll.
|
|
LED-FS5000SPI3030
|
SPI flexible strip, Black/White PCB, 30pcs smd rgb 5050 and 30pixels per meter, DC5V, 9W/M, IP65. 5meters in one roll.
|
|
LED-FS5000SPI6060
|
SPI flexible strip, Black/White PCB, 60pcs smd rgb 5050 and 60pixels per meter, DC5V, 18W/M, IP65. 5meters in one roll.
|
|
LED-FS5000SPI144144
|
SPI flexible strip, Black/White PCB, 144pcs smd rgb 5050 and 60pixels per meter, DC5V, 45W/M, IP65. 2meters in one roll.
|
|
Controller and Power Supply
|
|
LRS-350-5
|
Meanwell 350W, DC 5V output, indoor
|
|
LRS-350-12
|
Meanwell 350W, DC 12V output, indoor
|
|
RSP-320-5
|
Meanwell 320W, DC 5V output, indoor with PFC
|
|
RSP-320-12
|
Meanwell 320W, DC 12V output, indoor with PFC
|
|
LED-01SC
|
DMX LED Controller, SD card offline, 1* 512 CH
|
|
LED-SA08
|
8 port Standalone LED Controller
8 output, max load 8192 pixel
|
|
LED-ANC-ES4
|
Easy Artnet 4,4 output, Max 512pixel each port. AC220V / AC110V input, 1.2W, 1.5KG,
|
|
LED-GPS-SC
|
GPS SD Card Controller,2port GPS Standalone LED Controller
2 output, max load 2048 pixel
|
|
T100K
|
T100K
|
|
T500K
|
T500K
|
Fotoshow
Over ons
Iseeled is gespecialiseerd in totale LED -verlichtingsoplossingen voor grote zakelijke pleinen, clubs, concerten, hotels en winkelcentra, evenals LED -decoraties voor uw huis.
En niet alleen LED -verlichtingsarmaturen en controllers. We bieden ook software- en hardware -oplossingen voor het maken van speciale effecten.
Onze service
Pre-sales service
24 uur services, en bieden een aangepaste oplossing en voorstel volgens de verschillende vereisten van de klant, productencategorieën, succesvolle projectenvoorbeelden enz. En fabrieksbezoek, gesimuleerde effecttekening etc.
In-sales service
Geef details over productieschema en -procedure en gratis reserveonderdelen: noodzakelijke reserveonderdelen worden samen met producten aan klanten verstrekt.
After-sales service
Gratis technische training en kwaliteitsgarantie. Volledige set documenten gratis, inclusief installatierichtlijnen, software -bedieningsland, handmatig onderhoudshandleiding en besturingssysteemsoftware enz. En klachten Reactieperiode niet langer dan 24 uur; Onderhoudsrichtlijnen en probleemoplossing in 48 uur.
