DMX 50mm led pixel dot lichten disco
Modelnr. : LED-PL50DMX0301
DMX-adres kan ook automatisch worden ingesteld en opgeslagen.
Eenvoudige installatie met alle pixels in seriële verbinding
Bespaar 40% stroom met efficiënter DC / DC-ontwerp voor energiebeheer.
Werkspanning: DC24V.
Fabriek prijs .
Producten Beschrijving van DMX 50mm led pixel dot lights disco
1, Flexibele toonhoogte
2, DMX512-besturing of SPI-besturing
3, is de Verschillende grootte beschikbaar
|
Model NO.
|
LED-PL30DMX0301
|
LED-PL50DMX0301
|
LED-PL100DMX1201
|
LED-PL120DMX1801
|
|
LED
|
3pcs SMD RGB 5050
|
3pcs SMD RGB 5050
|
12pcs SMD RGB 5050
|
18pcs SMD RGB 5050
|
|
Dimension (housing)
|
30MM diameter
|
50MM diameter
|
100MM diameter
|
120MM diameter
|
|
Color
|
■■■RGB full color
|
■■■RGB full color
|
■■■RGB full color
|
■■■RGB full color
|
|
Voltage
|
DC 12V
|
DC 12V
|
DC 24V
|
DC24V
|
|
Power
|
MAX=0.72W
|
MAX=0.72W
|
MAX=2.88W
|
MAX=4.32W
|
|
Control Protocol
|
DMX512
|
|
Control Mode
|
DMX Artnet / DMX DVI / Standalone Control
|
|
Model NO.
|
LED-HP80DMX0101
|
LED-HP64DMX0101
|
LED-HP64DMX0101
|
LED-HP78DMX0101
|
|
LED
|
3W High Power RGB in one LED
|
3W High Power RGB in one LED
|
4W High Power RGBW in one LED
|
4W High Power RGBW in one LED
|
|
Emitting angle
|
70degree
|
120 degree
|
10*75 degree/ 120 degree
|
10*75 degree
|
|
Color
|
■■■RGB full color
|
■■■RGB full color
|
■■■RGB full color
|
■■■RGB full color
|
|
Voltage
|
DC 12V
|
DC 12V
|
DC 24V
|
DC12- 24V
|
|
Power
|
MAX=3W
|
MAX=3W
|
MAX=4W
|
MAX=4W
|
|
Control Protocol
|
DMX512
|
|
Control Mode
|
DMX Artnet / DMX DVI / Standalone Control
|
|
Dimension (housing)
|
80MM diameter
|
64MM diameter
|
64MM diameter
|
78MM diameter
|
|
Housing Material
|
Aluminum
|
Aluminum
|
Aluminum
|
Aluminum
|
|
Model NO.
|
LED-PL20SPI0101
|
LED-PL30SPI0301
|
LED-PL50SPI0601
|
LED-PL50SPI0601
|
|
LED type and QTY
|
1pcs SMD RGB 5050
|
3pcs SMD RGB 5050
|
6pcs SMD RGB 5050
|
6pcs SMD RGB 5050
|
|
Dimension (housing)
|
20MM diameter
|
30MM diameter
|
50MM diameter
|
50MM diameter
|
|
Color
|
■■■RGB full color
|
■■■RGB full color
|
■■■RGB full color
|
■■■RGB full color
|
|
Operating Voltage
|
DC 5V
|
DC 12V
|
DC 12V
|
DC 12V
|
|
Power
|
MAX=0.3W
|
MAX=0.72W
|
MAX=1.44W
|
MAX=1.44W
|
|
Control Protocol
|
WS2811
|
WS2811
|
WS2821
|
WS2811
|
|
Control Mode
|
DVI / Standalone Control
|

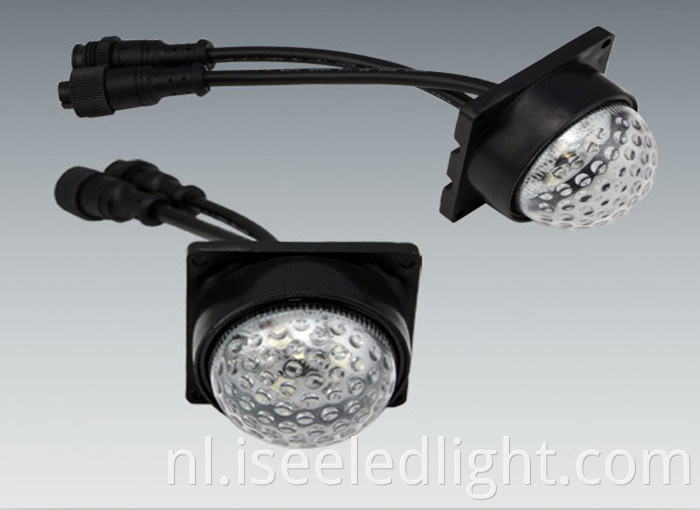

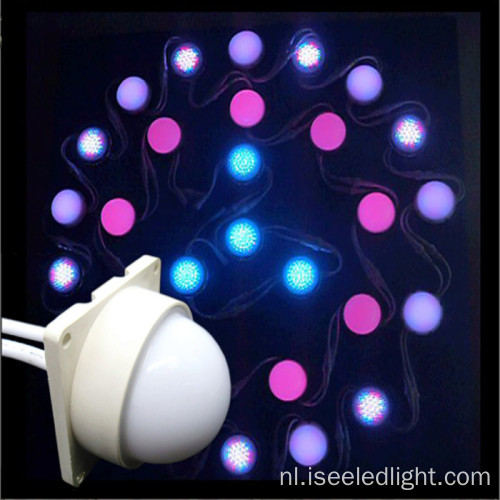

Foto's van DMX 50 mm led pixel dot lichten disco
Verpakking en verzending van DMX 50 mm led pixel dot lights
Over ISEELED
1, professionele DMX led-licht en SPI-leverancier van lichtoplossingen.
2, fabriek met R & D afd.
3, rijke ervaring op internationale zaken .
ISEELED-service
1, snelle reactie.
2, professionele pre-sales consulting.
3, goede service na verkoop.
4, ODM / OEM.
5, snelle doorlooptijd, de meeste bestellingen kunnen worden afgewerkt in twee weken.
