Kleur veranderende Mini Pixel LED Module RGB
Beschrijving van de producten
SPI Led Pixel Light

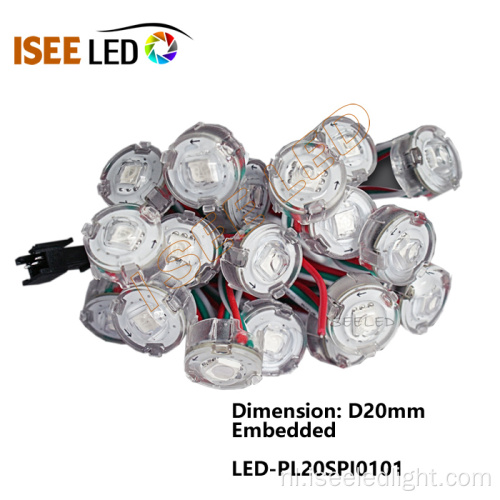

LED-PL20SPI0101
1. Mini led module kan led video wall maken.
2. Mini pixel led-module is SPI programmeerbare pixel led-licht.
3. RGB-pixel geleide module kan stadium geleid pixellicht zijn.
4, Mini led-module is full color led pixel licht.
5, RGB led pixel ws2811 lichten is IP65.
6, kan de RGB pixel geleide module flexibel geleid scherm maken.
7. Mini pixel led outdoor led-licht zijn ook voor de borden, billboard, LOGO, plein en straat, podium, hotel, bar en disco, etc.
parameters
|
Model NO.
|
LED-PL20SPI0101
|
LED-PL30SPI0301
|
LED-PL50SPI0601
|
LED-PL50SPI0601
|
|
LED type and QTY
|
1pcs SMD RGB 5050
|
3pcs SMD RGB 5050
|
6pcs SMD RGB 5050
|
6pcs SMD RGB 5050
|
|
Emitting angle
|
120 degree
|
120 degree
|
120 degree
|
120 degree
|
|
Color
|
■■■RGB full color
|
■■■RGB full color
|
■■■RGB full color
|
■■■RGB full color
|
|
Operating Voltage
|
DC 5V
|
DC 12V
|
DC 12V
|
DC 12V
|
|
Power
|
MAX=0.3W
|
MAX=0.72W
|
MAX=1.44W
|
MAX=1.44W
|
|
Control Protocol
|
WS2811
|
WS2811
|
WS2821
|
WS2811
|
|
Control Mode
|
DVI / Standalone Control
|
|
Dimension (housing)
|
20MM diameter
|
30MM diameter
|
50MM diameter
|
50MM diameter
|
|
Housing Material
|
PC
|
PC
|
PC
|
PC
|
|
LED Source Life
|
50,000 hours, based on test data of LED manufacturer
|
|
Temperature
|
-4℉ to 122℉(-20℃ to 50℃) operating temperature
|
|
Humidity Range
|
0 to 95% non-condensing
|
|
Protection
|
IP65
|
IP65
|
IP65
|
IP65
|

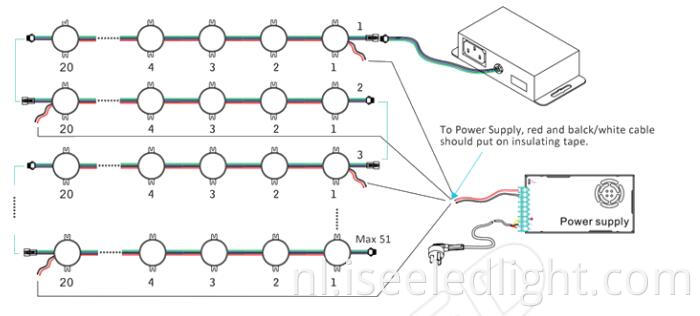

Diagram

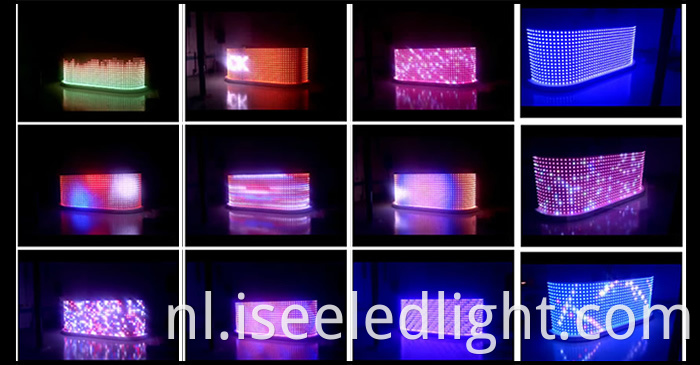

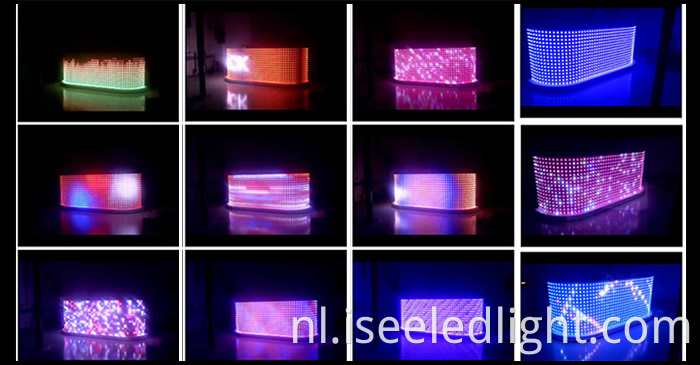

Foto's laten zien
Verpakken en verzenden
ISEELED-service
1, snelle reactie .
2, professionele pre-sales consulting .
3, goede service na verkoop.
4, ODM / OEM.
5, snelle doorlooptijd, de meeste bestellingen kunnen worden afgewerkt in twee weken.
